4 Channel SD Card AHD MDVRs With GPS, 3G/4G

  • Description
Product Detail

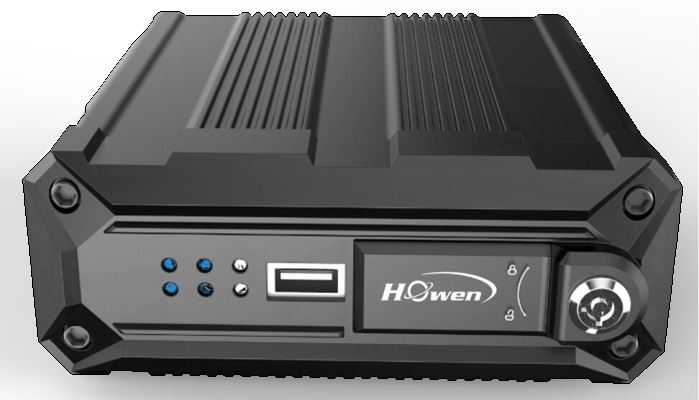

4 CHN SD Card Mobile DVR with GPS+Wifi



Model: Hero-MD41-04-GW


Howen 4 Channel SD card mobile DVR, Hero-MD41-04-GW is one of the smallest MDVR for Howen VSS. It can suitable for any vehicle installations since it is light and small. Moreover, SD card function can support up to 256GB in total for video storage.




Main Features


   ? 4 CH SD Card Mobile DVR with GPS+Wifi.

   ? Compatible with analog, AHD and IPC

   ? Supports 2 pcs SD cards for recording, each max. 128GB

   ? Small design, easy to install, save cost for installation and maintenance

   ? Wifi module for auto-downloading.


Specifications


Model

Hero-MD41-04

Video

Input

4 channel AHD/analog + 1 channel IPC

Output

1 channel

Recording

PAL:
4*WD1 @30fps+1*IPC 720p@30fps
2*AHD 720p@25fps+1*IPC 720p@25fps
NTSC:
4*WD1 @30fps+1*IPC 720p@30fps
2*AHD 720p@30fps+1*IPC 720p@30fps

Audio

Input

5 channels

Output

1 channel

Audio Signal Standard

Electrical level: 2 Vpp Input impedance: 4.7kO

System

OS

Linux

Control Mode

Touch screen, mouse control, IR remote control, Wi-Fi remote control, Network

Display

Display Split

1/4/9 Image display

OSD

GPS information, alarm, vehicle Number., speed, date/time

Recording

Video/Audio Compression

Video: H.264
Audio: ADPCM, G.711A, G.711U

Image Quality

1-8 levels adjustable (1 is the best)

Recording Mode

Ignition/Manual/Schedule/Alarm (sensor, speed, acceleration, video loss, temperature)  Mirror recording

Pre-recording

0-30minutes

Post-recording

0-30 minutes

Playback

Playback Channel

1 channel by local playback

Search Mode

Date/time, channel, event

Network

Ethernet

100Mbps Ethernet port, aviation connector
(RJ45 port optional)

WIFI

Supports 802.11b/g/n (optional)

Locating

GPS

Built in GPS module (optional).

Storage

SD

Support SD card x 2, max. 128GB

Interface

USB

USB 2.0

RS232

RS232 x 1, Support externsion to 4 (232 x 2, 485 x 2)

Sensor

8 inputs, 2 outputs

LED

PWR

Blue

NET

Green

ERR

Orange

USB

Green

ALM

Red

REC

Green

Power

Input

DC 8-36V

Output

5V@2A

Mechanical

Dimension (L × W × H)

167mm x 146mm x 54mm

Weight

900g

Environment

Protection

IP54

Operating Temperature

-40?- +70?(With heater) or -10?- +70?

Operating Relative Humidity

8%-90%


    Dedicated to manufacturing high quality and newest 4 ch sd card ahd mdvrs with gps, 3g/4g, Howen Technologies is famous as one of the best 4 ch sd card ahd mdvrs with gps, 3g/4g manufacturers and suppliers in China. Our products has FCC, CE and EMARK certification and it is sold at competitive price. Don't hesitate to buy one with our professional factory.
