CNC Hydraulic Copper Busbar Punching Machine For High-low Switchgear Manufacturing
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail
China factory price CNC hydraulic copper busbar punching machine
All parts of the busbar machine almost are designed and produced by ourselves.
Thus, if you purchased our machine,we can offer you the perfect aftersales service support and technical support.
We have many different size of punch die sets in stock.
We produce the high precision machining machine, easy to operate.
Application of copper busbar bending machine,
This machine is for copper/aluminum busbar bending, punching and shearing.
This machine is widely used in high-low switchgear manufactuting, electrical control panels building, power station establishment etc.
The technology parameters of copper busbar bending machine,
| Function | Item | Model | |
| JPMX-303ESK | JPMX-503ESK | ||
| Punching | Max. Punching Force (KN) | 300 | 500 |
| Punching Diameter Range (MM) | 4.3-25 | 4.3-34 | |
| Max. Thickness (MM) | 12 | 16 | |
| Max. Width (MM) | 150 | 250 | |
| Shearing/Cutting | Max. Shearing Thickness (MM) | 12 | 16 |
| Max. Shearing Width (MM) | 150 | 250 | |
| Vertical Bending | Max. Bending Force (KN) | 300 | 500 |
| Max. Width (MM) | 150 | 250 | |
| Max. Thickness (MM) | 12 | 16 | |
| Honrizental Bending | Max. Width (MM) | 100(10mm THK) | 120(10mm THK) |
| Max. Angle (Degree) | 90° | 90° | |
| Out Dimension | MM | 1750*1350*1260 | 1850*1500*1400 |
| Power | KW | 3*4KW | 3*5.5KW |
| Weight | KG | 1350KG | 1950KG |
The Accocessories:
8 sets of punching die. (6 round dies, 2 oblong dies) 1 set of shearing mold
2 sets of horizontal bending mold 2 sets of vertical bending mold
1 set of embossing mold 1 set of U bending mold
1 set of oil filler 1 set of inner hexagon spanner
3 sets of foot switches 1 set of hydraulic system sealing ring
1 set of random tools 2 pieces of Limit Switch
1 piece punching location needle.
(4). Our busbar machine os easily to operate and learn,especially for the freshman.
Bending unit,

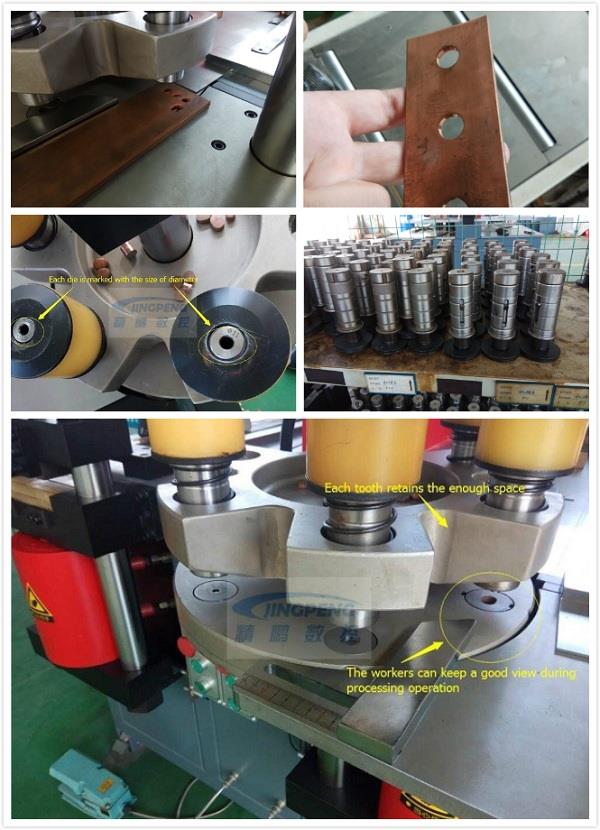

The punching unit,
The cutting unit,
Welcome to visit our company and factory.
And you will realize that our machine is your best choice.
In order to attract more customers and to extend machines' influence,our company offers the factory prices.
We just hope to finf a way to cooperate with you and your company longer.
The packaging and shipping,
Firstly, the copper busbar bending machine is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, fasten the machine into the wood case for safety and against clashing.
Company Information,
1. Our quality certificate,
We are professional manufacturer for busbar processing machine in China for more than ten years. Our busbar processing machine are approved by ISO & CE certificate, the machine quality is highly respected among customers in North America, Europe and most Asia countries.
2. Our factory show,
3. Our busbar machine on the electrical equipment exhibition,
FAQ
1. What is your payment terms?
40% TT as deposit, balance be paid when goods are ready for loading before shipment.
2. What is your delivery time?
Usually within 7-25 days after the deposit.
3. What is your power supply?
We will adjust according to your countries power supply. No problem.
4. What is your Min order quantity?
One set. Our customers can be end users, retailers and wholesalers.
5. Are all the Labels and instuctions of the machine in English?
Yes. the labels on the machine and the manuel books are all made in english version.
6. Besides this machine, do you have any other options for me?
We have dozens of options for you:
CNC busbar machine; Non- CNC busbar machine, combined busbar machine,
busbar cutting tools, busbar bending tools, busbar punching tools.
hydraulic pumps, hand pumps etc.
Please contact with us to know more informations!
7. What is your requirement for exclusive / sole agent?
We are looking for sole agent in world market.
We need to test the credit and the monthly quantity of the importers.
If the importer credit is good and reliable. And the monthly order quantity meet local market demand. We will come to further association.
