KYR12 Series Separate Slip Ring

  • Description
Product Detail

Xuzhou Keyo Electricc Co.,Ltd is one of the leading China KYR12 Series Separate Slip Ring manufacturers and suppliers, and a professional company equiped with productive factory, which is able to produce newest and best CE certification KYR12 Series Separate Slip Ring products. Welcome to buy cheap or wholesale high quality products from us.

Features & Applications
¦ HD image real-transmission with 360°continuous rotation
¦ The slip ring is designed for transfering high speed serial digital and analog signal.
It can be applied to transfering 1080P or 1080I HD-SDI etc., and the transmission rate
could acheive 3Gbps/3GHz or higher. The standard models are 8 or 12 normal signal rings
with 1 RF Coaxial Connector with 50 ohm?75 ohm specific impedance and MMCX? SMA?MCX?
BNC?SMB joints(Other requested connector could be applied). The coaxial cable can be
choosed from RG174? RG178?RG179?RG316. And normal signal rings could be used for
transfering power, control signal or other low frequency signals.
Specifications:
Number of Circuits12
Rotary Speed0-100 rpm
Voltage Rate0-240 VAC/DC
Current Rate2 amps per circuit
Temperature-20? to +80?
Contact MaterialPrecious metal
Electrical WireWire SizeAWG26 UL Teflon®
Wire Length250 mm
Coaxical CableCable SizeRG174?RG178?RG316 (50O) ; RG179 (75O)
Cable Length250 mm
Connector TypeMMCX?SMA (50O) ; MCX?BNC?SMB (75O)
Frequency Range3GHz DC
Transmission Rate=3Gbps

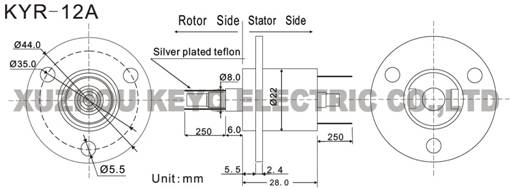

OUTLINE DIMENSIONS:
