STeWinA4S

2. Specification and Performance Parameter

Name	STeWinA4S
Size	10.4-inch
Resolution	640X480
Brightness	700
Contrast	800:1
Backlight	LED(adjustable)	life:50000h
Touch screen	four-wire resistive,1000000/point
Operating temperature	-20?~ +70?(certified)
Passed certification	CE,FCC,ROHS and temperature
	System parameters
Operating system	Genuine edition WINDOWS CE5.0Core Chinese/English
Basic frequency	400MHz
Processor	SAMSUNG S3C2440-40
Internal memory	64MB SDRAM
Memory	128MB NAND Flash
Storage	U-Disk ; SD card
Software compilation	ARMV4I
method
	Interface parameter
Serial	RS232(2);RS485(1)
Serial frequency	Setted up through software
SD card	Up to 8GB (supporting for upgrading OS,boot logo,data storage)
USB HOST	USB Host1.1 Connect to U-Disk, USB mice, keyboards
USB DVICE	Connect to computer for USB1.1 device access over ActiveSync
Network	100M, network debugging, data transmission
Audio	Stereo headphone output, speaker
Power	9V~28V(12V	130~400mA)
Expansion function	WIFI?GPS?GPRS?Bluetooth?Watchdog
Universal digital IO	Input(4),output(5)
	Dimensions
Mounting type	Embedded installation shell
Safety performance of	Waterproof, shakeproof
IP65
Size of front panel	248mmX192mm
Size of mounting hole	235mmX179mm

1.3 Dimensions

Installation size of STeWinA4S

Unit: mm

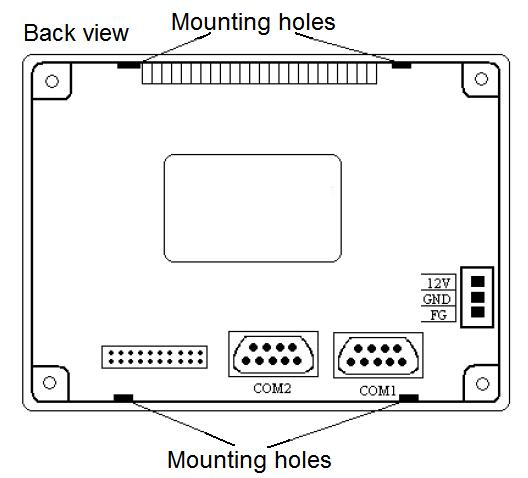

4. Appearance Introduction


5. Interface Introduction

1?Power: DC 9V~28V


2?USB interface: USB-HOST for U-Disk (up to 2G), USB mice, USB keyboards


3?SD card: up to 8G


4?SW1

This switch is an update LOGO,system or whether automatically


5?Network interface


6?Serial:RS232 and RS485 (Optional)


STeWin080 can be a displayable terminal control device and connected to subordinate computer (mcu) through RS232.


The advantage of separating display interface from control system is making the systems independent and upgrading conveniently.

7?Audio output port(Optional): connect to Stereo headphone output or speaker
